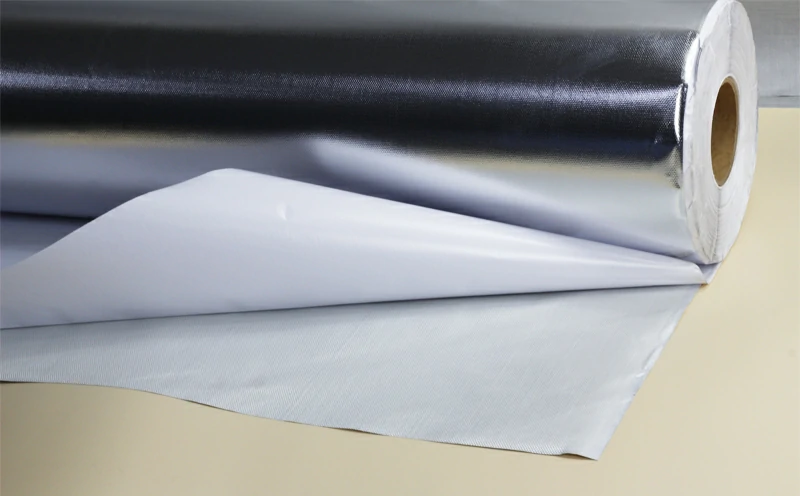

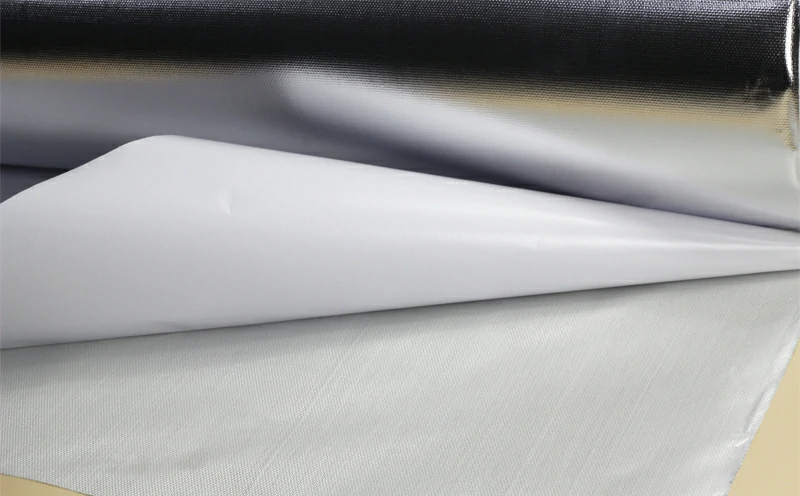

Aluminum foil glass cloth tape is a thin tape that combines glass cloth with a laminate of aluminum foil.It provides high strength and reflectivity with excellent flexibility. Spray protective aluminum foil glass cloth tape’s backing (7um foil / FR glue / 110gsm glass cloth 12×12), coated with a high performance Synthetic rubber-resin adhesive, protected by an easy-release silicone release paper.

TYPICAL APPLICATIONS:

  • Can be used as a protective shield on insulated hot surfaces which are in close proximity to potential oil spray in the engine room.
  • Fuel oil injection pipes, fuel oil service pipes, fuel oil valve cooling oil pipes attached to diesel engines.
  • Lube oil service pipes and hydraulic oil pipes attached to diesel engines.
  • Flammable oil pipes.
  • Flammable oil pump and strainer.
  • Fuel oil heater.

FEATURES:

Engineered for a wide range of applications and environments.
Use on foil jacketing insulation.
Can help increase efficiency and meet sustainability goals by minimizing air distribution loss.
Moisture-, mold-, and UV-resistant design.

PHYSICAL PROPERTIES:

PROPERTIES

METRIC

ENGLISH

TEST METHOD

Backing Thickness

120 Micron

5.0Mil

PSTC-133 / ASTM D 3652

Total Thickness

170 Micron

7.2 Mil

PSTC-133 / ASTM D 3652

Adhesion to Steel

18N/25mm

72Oz./In.

PSTC-101 / ASTM D 3330

Tack Rolling Ball

20cm

6.0 In.

PSTC-6 / ASTM D 3121

Tensile Strength

255 N/25mm

58.0Lb/In

PSTC-131 / ASTM D 3759

Elongation

5.0%

5.0%

PSTC-131 / ASTM D 3759

Service Temperature

-30℃ to +120℃

-22℉ to +248℉



Fire Rating

Class O & 25 / 50

Class O & 25 / 50

BS476 Pt.6 & 7 / UL 723

ROLL SIZE:

Finish Roll:

50mm x 50m 2” x 55yds
75mm x 50m 3” x 55yds

Log Roll:  1020mm x 50m

Jumbo Roll:1020mm x 3000m
