No.204B

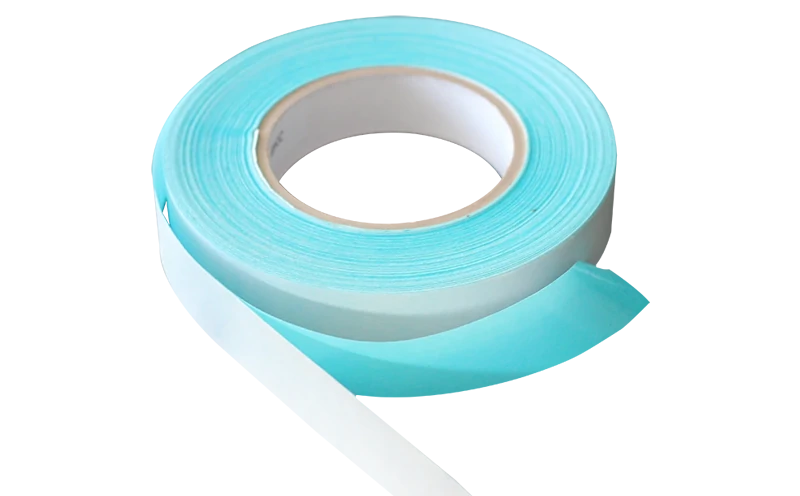

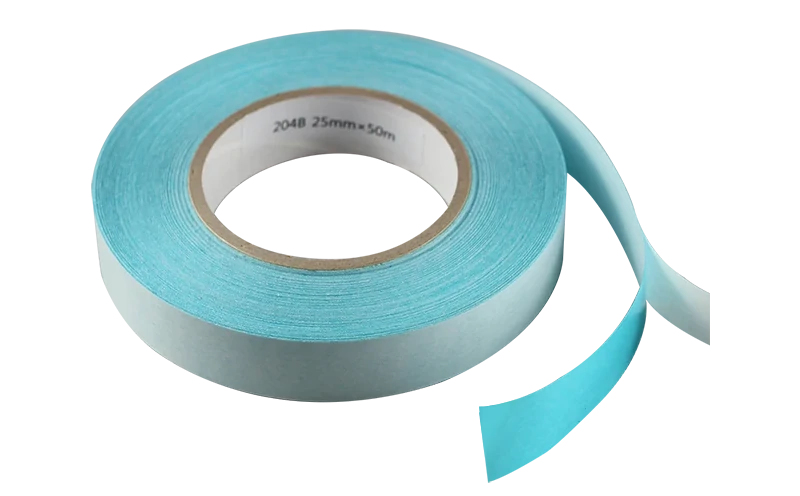

Butt splicing tape is a single side splicing tape that used in milling and printing operations to splicing of the rolls. The tape don’t need overlapped. It is a single-sided tape to connect the two pieces over the seam.
Butt splicing tape No.204B is a single-sided repulpable splicing tape, with a liner consisting of a flat-back paper and a modified water soluble acrylic adhesive.
Butt splicing tape features a strong, extensible, flat paper backing that can withstand the rigors of the printing environment. The backing is engineered for optimum strength for splicing, tabbing and roll closing. It offers high shear strength and is coated with a high-tack, blue, repulpable adhesive designed to bond to heavy grades of paper.
Butt splice tapes are used for butt splicing on papers, films and foils. The splice tapes performs well at higher temperatures and is available in both blue and white.
Butt splicing tape with liner is suitable for automatic core starters, slitters, rewinders, sheeters, rereelers and winders.
Core starting
Roll closing
Tabbing
Temporary splicing of variety grades of paper
Thread-up applications at the off-machine coater
Total thickness 110 µm (4.3mils).
Backing material flat paper.
Type of adhesive repulpable tackified acrylic.
Type of liner repulpable siliconised paper.
|
Thickness: |
110um |
|
Adhesion: |
900g/25mmover |
|
Ball Tack: |
No.10 over |
|
Holding power: |
180 sec over |
|
38mm x 50m |
24 |
|
50mm x 50m |
24 |
