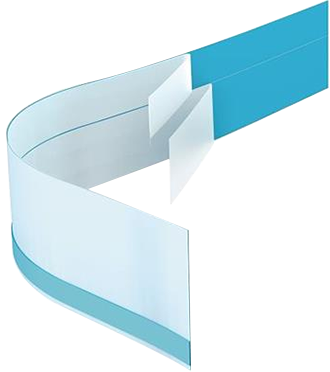

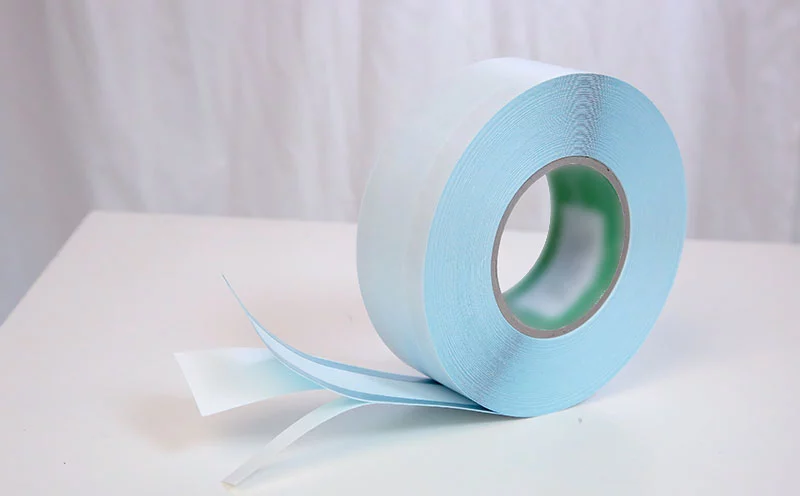

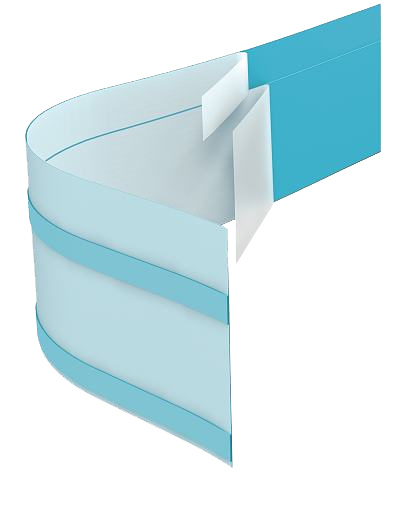

Flying Splice Tape

No.204S, 38mmx50m
Flying splice tape is Repulpable double-sided high speed splicing tape.
Flying splice tapes are most commonly used, in paper manufacturing industries, to attach an already machine threaded paper reel to the new paper reel. This process of splicing the paper reels allows operators to avoid lengthy downtimes and run continuous production without having to re-thread the material through their equipment.

  • Introduction

Splice tape application

Single side and Double side coated Splice Tapes are widely used in manufacturing industries such as pressure sensitive adhesive coating, flexible film and paper coating, commercial printing, newspaper printing, pulp & paper manufacturing, corrugated board manufacturing, converting, die-cutting, as well as roll tabbing and core start-up.

Flying splice tape application

The Flying splice tape used for high speed splicing conditions when high tack is required and to compensate for roll profile issues. Used for heavy weight papers in manual and automatic splicing equipment for high speed splicing conditions when high tack is required and to compensate for roll profile issues. Additional blue color on the backside.

Data Sheet

Item Specification Result Test Method
Release Liner 90gsm Silicone coated glassine paper
Adhesive Water soluble acrylic adhesive
Tape thickness 110um 114um Mitutoyo Thickness gauge
Tape color Blue, Red, Clear
Adhesion 900gr/25mm 1400 180˚ Peel strength 300mm/m
Ball tack No.10 15 Slope of 30˚, steel ball tack test
Holding power 180 sec 300 150℃, 25mmx25mm, 1Kg



Highest tack properties.

Very good adhesion values on coated and uncoated paper.

Low splice thickness.

Printable and coatable backing.

Slit liner for the secure fixation of the top sheet.

Adhesive formulation with very high tack properties for excellent contact between expiring web and new reel.

Two splitting strips with paper backing for a smooth opening of the new paper reel without jeopardizing the coating process.



                                No.204D                                                                                        No.204S
