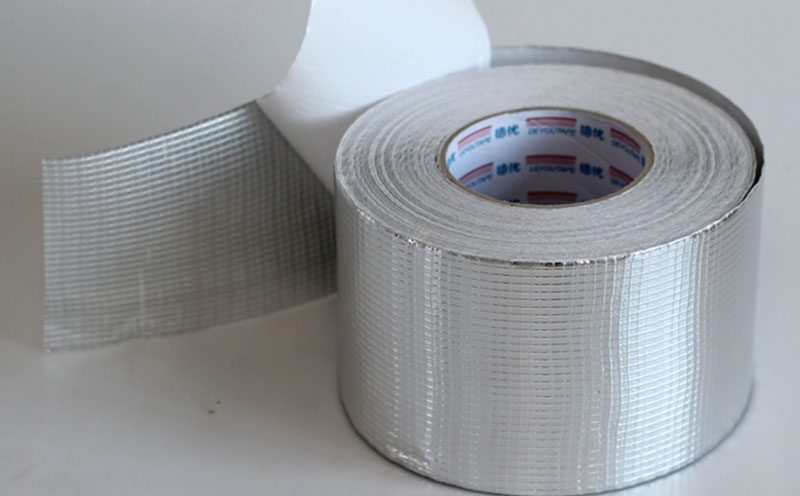

Fsk foil tape backing is glass fiber reinforced aluminum film coated with hot melt adhesive and protected by a silicone paper liner.Fsk foil tape is used for sealing cold and dual temperature duct seams and joints where FSK is the basic insulation facing.

FS-Foil scrim backing

R-Rubber-resin adhesive

50-Backing thickness 50um

90-Tape thickness 90um

ALUMINUM FOIL TAPE FEATURES:

  • Excellent level of adhesion and performance at higher temperatures.
  • High-strength foil-scrim laminate backing resists tearing.
  • High quality adhesive capable of bonding on a wide variety of substrates in cold climates.
  • High-tack synthetic rubber adhesive forms an instant bond.
  • Vapor barrier, reflecting heat, reflecting light, and UV-resistant design.

ALUMINUM FOIL TAPE APPLICATIONS:

  • Applied for the coating and insulation in the air conditioning and ventilation sector.
  • General patching, sealing and fastening applications.
  • Union of fiberglass sheets or duct joints.
  • Insulation sealing of cold rooms.
  • Recommend use as sheet metal duct water vapor seal.
  • Rigid insulation of closing air ducts.

TAPE PROPERTIES:

PROPERTIES

METRIC

ENGLISH

TEST METHOD

Backing Thickness

50Micron

2.0Mil

PSTC-133 / ASTM D 3652

Total Thickness

90 Micron

3.6Mil

PSTC-133 / ASTM D 3652

Adhesion to Steel

15N/25mm

52.5 Oz./In.

PSTC-101 / ASTM D 3330

Tack Rolling Ball

20cm

8.0In.

PSTC-6 / ASTM D 3121

Tensile Strength

120 N/25mm

27.3Lb/In

PSTC-131 / ASTM D 3759

Elongation

3.0%

3.0%

PSTC-131 / ASTM D 3759

Service Temperature

-20℃ to +80℃

-4℉ to +176℉



Applying Temperature

+10℃ to +40℃

+50℉ to +105℉



TAPE ROLL SIZE:

Finish Roll:

50mm x 50m 2” x 55yds
75mm x 50m 3” x 55yds

Log Roll:1200mm x 50m

Jumbo Roll:1200mm x 900m
