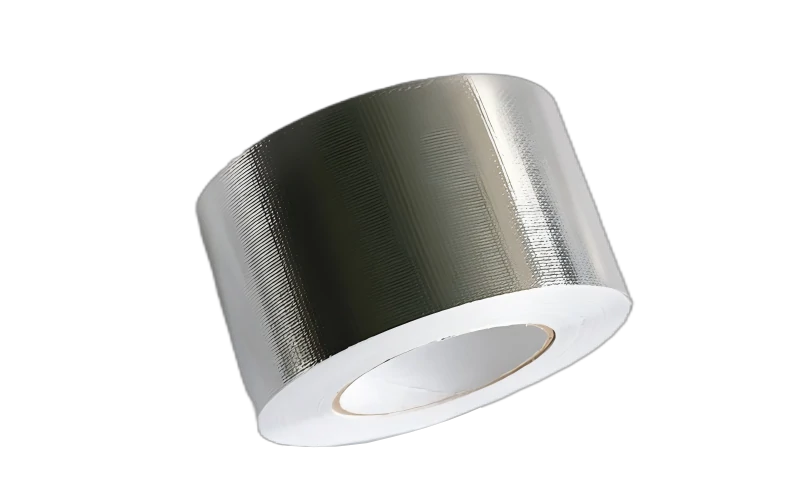

Acrylic adhesive foil rape are single-faced adhesive tape of aluminum foil backing which is coated by solvent acrylic adhesive (PSA). Aluminum foil tape is industrially manufactured, and thus can be manipulated based on the selection of the monomers used in the formulation.
Aluminum foil tape will be offer good tack and adhesion to width range of temperature (from -30 degrees to 150 degrees).Acrylic adhesive foil tape can offers reliable and durable Foil-Scrim-Kraft Facing joints and seams sealing in HVAC ductwork application.
Aluminum foil tape will be good aging stability, high resistance to UV, ozone and humidity, best useful in long-term, outdoor applications. Acrylic adhesive foil tape are ideal for applications involving extreme temperatures, such as refrigeration.
AF-Alum. Foil backing
A-Acrylic adhesive
100-Backing thickness100um
150-Tape thickness150um
Acrylic adhesive foil tape has many uses including sealing ducts for heating, air conditioning and refrigeration, vapor barrier, sealing and masking of aircraft, masking in powder coating applications, heat reflection.
Aluminum backing provides excellent reflection of both heat and light.
High quality adhesive with super strong adhesion and holding power .
Low moisture vapor transmission rate makes AFA100150 an excellent vapor barrier.
Service Temperature range from -30℃ to +150℃.
PROPERTIES |
METRIC |
ENGLISH |
TEST METHOD |
Backing Thickness |
100Micron |
4.0Mil |
PSTC-133 / ASTM D 3652 |
Total Thickness |
150Micron |
6.0Mil |
PSTC-133 / ASTM D 3652 |
Adhesion to Steel |
20N/25mm |
72Oz./In. |
PSTC-101 / ASTM D 3330 |
Tensile Strength |
125 N/25mm |
28.5Lb/In |
PSTC-131 / ASTM D 3759 |
Elongation |
3.0% |
3.0% |
PSTC-131 / ASTM D 3759 |
Service Temperature |
-30℃ to +150℃ |
-22℉ to +302℉ |
|
Applying Temperature |
-10℃ to +40℃ |
+50℉ to +105℉ |
|
Finish Roll:
50mm x 50m | 2” x 55yds |
75mm x 50m | 3” x 55yds |
Log Roll: | 1020mm x 50m |
Jumbo Roll: | 1020mm x 3000m |
