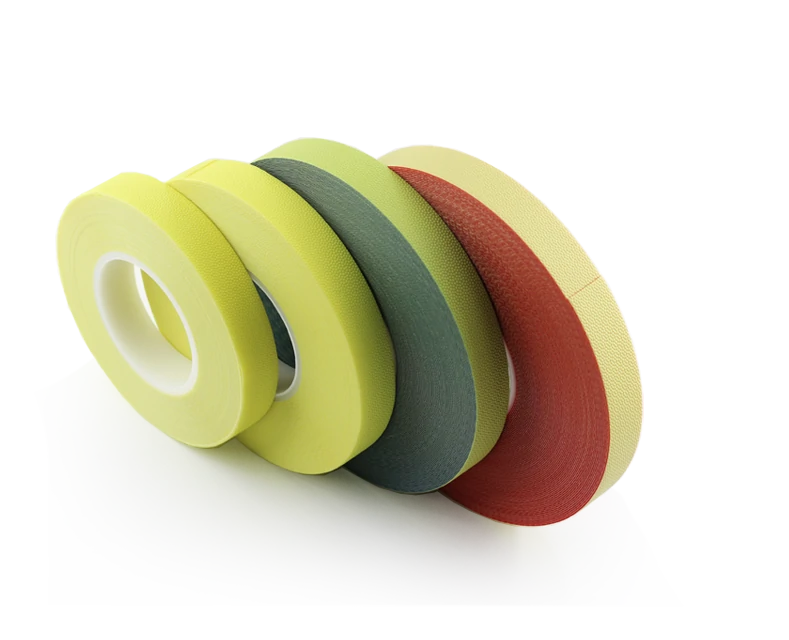

Thermal spray masking tape is a Silicon rubber coated glass cloth tape, or a Aluminum foil-Glass cloth laminated adhesive tape. These masking tape are offen used in thermal spray processes, such as, shielding protection of Sand blasting, Plasma spray coating, Gas fuelled HVOF, Flame spray, Vapor deposition.
Thermal spray masking tape widely used in the aerospace, automotive, healthcare industries. The tape is a valuable tool in thermal spray applications, offering heat resistance, thermal insulation, strong adhesive properties, and versatility for various industrial processes. Its durability, ease of use, and cost-effectiveness make it an essential component in industries that rely on thermal spray technology for surface coating and protection.
1. Heat Resistance: Thermal spray tapes are designed to withstand high temperatures generated during thermal spray processes. It can endure extreme heat without melting or losing its adhesive properties.
2. Thermal Insulation: The tape acts as a thermal barrier, preventing heat transfer to the underlying surfaces or components, thereby protecting them from heat damage.
3. Adhesive Properties: Thermal spray masking tape has strong adhesive properties that allow it to securely bond to surfaces, ensuring that it stays in place during thermal spray applications.
4. Customizable Width and Length: Thermal spray tapes are available in various widths and lengths to accommodate different application requirements. It can be cut and customized to fit specific surface areas.
5. Easy Application: The tape is easy to apply and remove, making it convenient for use in thermal spray processes. It adheres well to surfaces and can be easily peeled off after use.
6. Non-Flammable: Thermal spray masking tape is non-flammable, ensuring safety during thermal spray processes where high temperatures are involved.

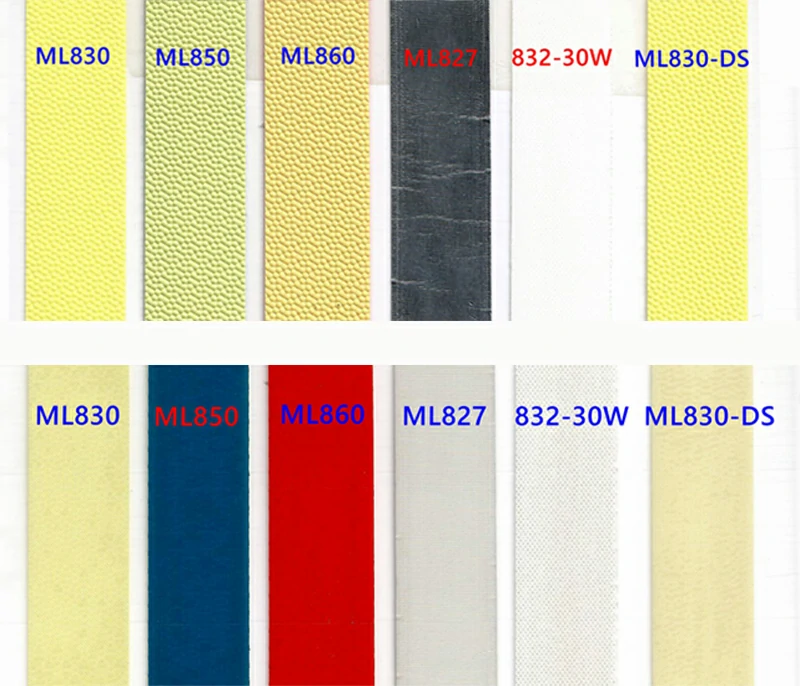

| Product code | Carrier | Adhesive | Roll size |
Adhesion N/25mm |
Elongation % |
Temperature resistant °C | ||
| Material | Color | Thickness mm |
Roll size | |||||
| ML830 | Glass cloth | White | Silicone | 0.3 | 975mmx33m | 13 | 11 | 1200 |
| ML850 | Glass cloth | Blue | Silicone | 0.5 | 975mmx33m | 12 | 10 | 1200 |
| ML860 | Glass cloth | Red | Silicone | 0.6 | 975mmx33m | 12 | 10 | 1200 |
| ML827 | Aluminum foil + Glass cloth | Silver | Silicone | 0.19 | 975mmx33m | 11 | 12 | 800 |
| 832-30W | Glass cloth | White | Silicone | 0.3 | 1020mmx33m | 11 | 11 | 800 |
| ML850-AS | Aluminum foil + Glass cloth | White | Silicone | 0.65 | 500mmx33m | 12 | 8 | 300 |
| ML830-DS | Glass cloth | White | Double sided Silicone | 0.6 | 970mmx33m | 19 | 2.7 | 300 |
ML827 is made of a Aluminum foil laminated glass cloth as backing, and coating a pressure-sensitive silicone adhesive. It is designed to withstand high temperatures, making it ideal for use in a variety of thermal spray masking. It is highly conformable masking tape for parts with complex geometries or hard-to-reach areas while offering good abrasion resistance. It create clean edges upon removal and is designed with clean removal adhesive.
High temperature tape use to ventilation duct insulation sealing.
