Aluminum Foil Heat Tape

Aluminum foil heat tape are thickness 50um coated with heat resistant adhesive without liner. Aluminum foil tape heat rating good performance for high temperature application.

  • Aluminum Foil Heat Tape Introduction

AF-Alum. Foil backing

RRubber-resin adhesive

50-Backing thickness50um

90-Tape thickness 90um

SW-Self-wound, without release paper liner

Self-Wound Roll – A roll of Aluminum foil heat tape in which each layer of tape is directly on top of the last one.  The Aluminum foil tape without liner is a bright, soft temper aluminium foil, with a pressure sensitive adhesive. Foil is treated on one side with silicone for easy release on unwind.



Aluminum foil heat tape without liner are single-faced adhesive tape of Aluminum Foil backing which is coated by Solvent Acrylic adhesive (PSA). Aluminum foil heat tape is industrially manufactured, and thus can be manipulated based on the selection of the monomers used in the formulation.



FEATURES

Aluminium foil tape refrigeration no liner don’t need to tear off the release paper liner during use, reduce operation time. So most of Refrigerator factory use Self wound aluminum foil tape.



Aluminium foil tape refrigeration will be offer good tack and adhesion to width range of temperature (from -30 degrees to 150 degrees ).

Acrylic adhesive Aluminium foil tape refrigeration will be good aging stability, high resistance to UV, ozone and humidity, best useful in long-term, outdoor applications.



TYPICAL PHYSICAL PROPERTIES

PROPERTIES

METRIC

ENGLISH

TEST METHOD

Backing Thickness

50 Micron

2.0Mil

PSTC-133 / ASTM D 3652

Total Thickness

90Micron

3.6 Mil

PSTC-133 / ASTM D 3652

Adhesion to Steel

15N/25mm

54Oz./In.

PSTC-101 / ASTM D 3330

Tensile Strength

75 N/25mm

17Lb/In

PSTC-131 / ASTM D 3759

Elongation

3.0%

3.0%

PSTC-131 / ASTM D 3759

Service Temperature

-20℃ to +80℃

-4℉ to +176℉



Applying Temperature

-10℃ to +40℃

+50℉ to +105℉





TYPICAL APPLICATIONS:

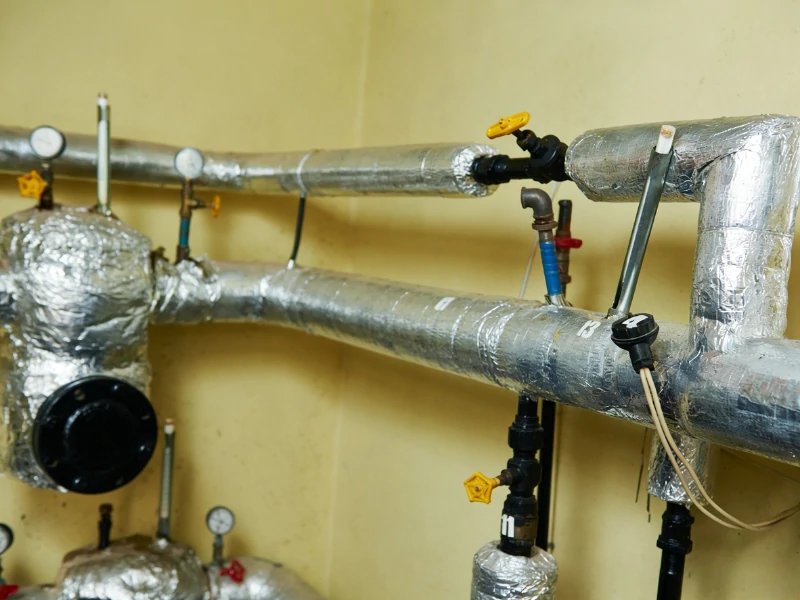

Aluminum foil tape for exhaust, Aluminum foil tape for fire resistant, Aluminum foil tape for insulation, Aluminum foil tape for HVAC ducts, Aluminum foil tape for dryer vent.



All of these application of Aluminum foil heat tape are good performance for high temperature.



ROLL SIZE:

Finish Roll:

50mm x 50m     2” x 55yds

75mm x 50m     3” x 55yds

Log Roll:   1020mm x 50m

Jumbo Roll: 1020mm x 3000m
