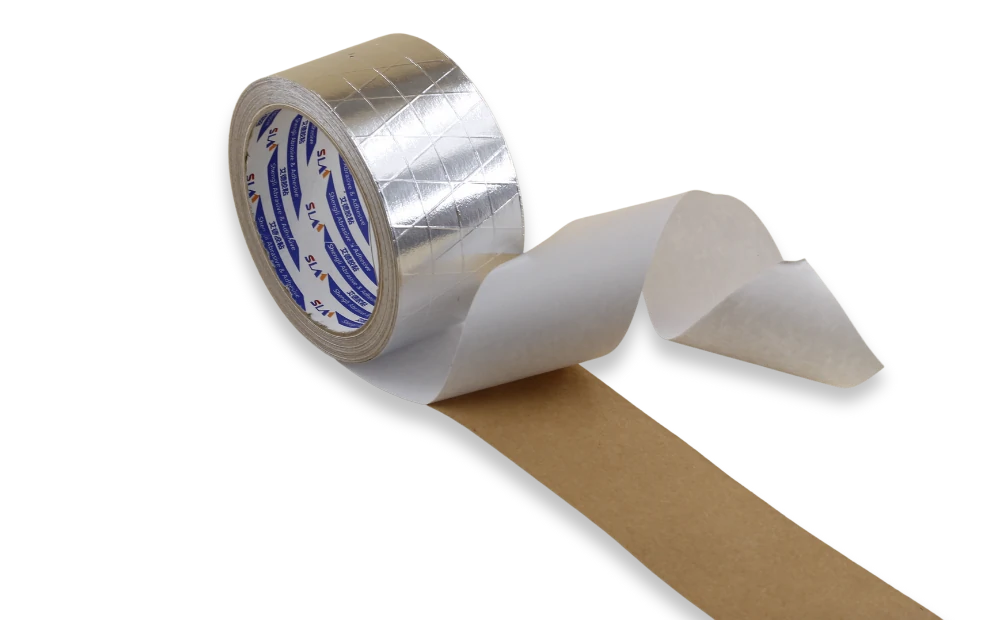

FSKA120170A

FSK Tape

Foil / Scrim / Kraft, FSK facing tape

FSK Tape made with Foil-Scrim-Kraft lamination that is coated with a Solvent acrylic or Synthetic rubber-resin adhesive. It offers high puncture and tear resistance, ensuring a long life and durability in various conditions and applications.

FSK Tape is used for sealing and patching FSK-faced duct wrap insulation, as well as a vapor seal for reinforced aluminum faced fiberglass, mineral wool thermal insulation, and sheet metal.

Foil-Scrim-Kraft lamination backing is flexible and conforms well to irregular surfaces and curves. With superior resistance to weathering, mold, UV and environmental conditions, this tape performs extremely well in demanding cold and hot temperature applications.

AF7105A

3-way scrim reinforced, Tri-directional FSK backing, Synthetic rubber-resin adhesive, good initial tack.
AF7105B

2-way scrim reinforced FSK backing, Synthetic rubber-resin adhesive, good initial tack.
AF7125A/CW

3-way scrim reinforced, Tri-directional FSK backing, Solvent-based acrylic adhesive with good cold weather adhesion.

AF7125B/CW

2-way scrim reinforced FSK backing, Solvent-based acrylic adhesive with good cold weather adhesion.
AF7135A

3-way scrim reinforced, Tri-directional FSK backing, Solvent rubber-resin adhesive, good initial tack.
AF7125AR/CW

3-way FSK backing, Class O Flame-retardant grade, Solvent-based acrylic adhesive with good cold weather adhesion.

Foil Scrim Kraft Tape Feature
- High and low temperature resistant adhesive.
- High-strength foil-scrim-kraft paper laminate backing resists tearing.
- Long life and durability in various conditions and applications.
- Peel-back design for easy application.
- The pressure-sensitive adhesive allows for quick and convenient installation.
- Puncture proof, Moisture proof, UV-resistant design.
Foil Scrim Kraft Tape Applications
- FSK tape is a adhesive tape use for installation of Fiberglass FSK Duct Wrap, Fiberglass FSK Faced Board, and any other FSK faced product.
- They are specially designed for taping insulation joints against moisture and vapor on tri-directional FSK jacketing.
- Vapor seal for reinforced aluminum faced fiberglass or mineral wool thermal insulation.
- Joining foil faced insulation panels and pipe sections.
- Joining fiber insulation between the internal skin and fuselage of aircraft.

Foil Scrim Kraft Tape Properties

	Backing	Adhesive	Thickness Micron	Backing thickness	Adhesion N/25mm	Tensile N/25mm	Elongation %	Service Temp°C
AF7105A	3-way FSK	Synthetic rubber-resin	170	120	25	120	1	-20 ~ +80
AF7105B	2-way FSK	Synthetic rubber-resin	170	120	25	120	1	-20 ~ +80
AF7125A/CW	3-way FSK	Cold weather solvent acrylic	170	120	16	120	1	-30 ~ +80
AF7125B/CW	2-way FSK	Cold weather solvent acrylic	170	120	16	120	1	-30 ~ +80
AF7135A	3-way FSK	Solvent synthetic rubber-resin	170	120	30	120	1	-20 ~ +80
AF7125AR/CW	3-way FSK	Flame-retardant solvent acrylic adhesive	170	120	20	120	1	25/50 & Class O
