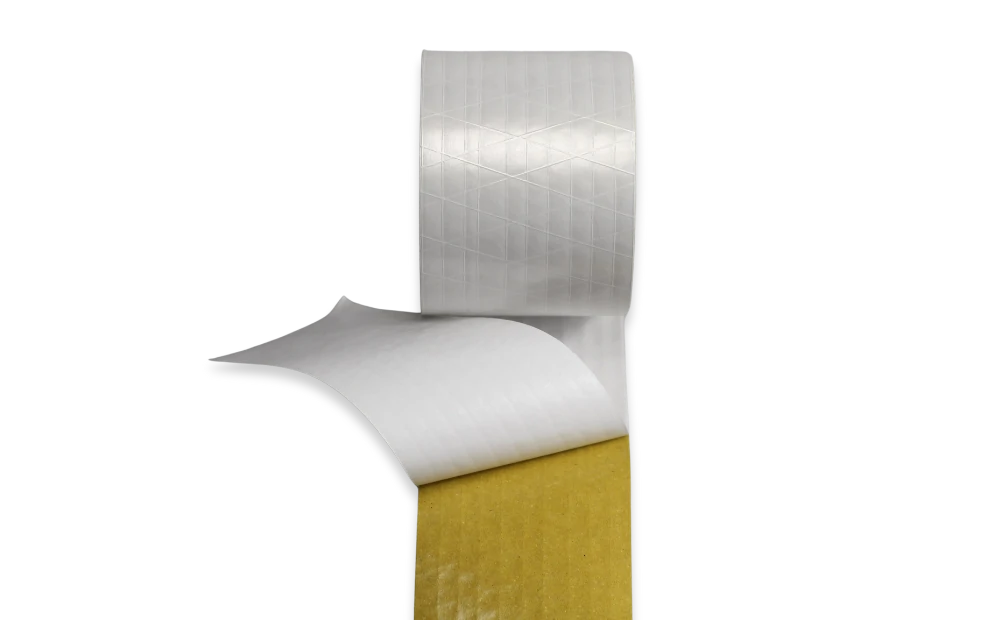

PSK tape is designed to provide a vapor barrier seal on HVAC duct insulations. It is offered in white or black to match the two color offerings (white and black) of PSK-facing duct insulations. PSK seaming tape is tear-resistant and offers a super high-tack, acrylic adhesive that bonds tightly to surfaces. PSK tape can be used on applications that operate within a wide temperature range: -20°F – 260°F/-29°C -126°C.
3-way Black Polypropylene-Scrim-Kraft backing, combined with a high performance solvent acrylic adhesive, protected by an easy-release silicone release paper. PSK tape is easy to apply and can be used on a variety of surfaces. To apply PSK insulation tape, simply clean and dry the surface to be sealed. Then, remove the backing from the tape and apply it to the surface, making sure to smooth out any wrinkles or air bubbles.
PSK-PP scrim kraft backing
Acrylic adhesive
R-Rubber-resin adhesive
120-Backing thickness120um
170-Tape thickness170um
B-Black PP surface
W-White PP surface
Black Tape & White Tape
Customers now have the choice of 3 different insulation facing colors: Black PSK, White PSK, or Silver FSK (Foil-Scrim-Kraft). The Black and White PSK were designed for aesthetically targeted applications, while the Silver FSK is intended for more traditional applications, like those behind closed walls or ceilings.
PROPERTIES |
METRIC |
ENGLISH |
TEST METHOD |
Backing Thickness |
120Micron |
4.8Mil |
PSTC-133 / ASTM D 3652 |
Total Thickness |
170 Micron |
6.8Mil |
PSTC-133 / ASTM D 3652 |
Adhesion to Steel |
20N/25mm |
65 Oz./In. |
PSTC-101 / ASTM D 3330 |
Tack Rolling Ball |
15cm |
6.0In. |
PSTC-6 / ASTM D 3121 |
Tensile Strength |
120 N/25mm |
27.3Lb/In |
PSTC-131 / ASTM D 3759 |
Elongation |
2.0% |
2.0% |
PSTC-131 / ASTM D 3759 |
Finish Roll:
50mm x 50m | 2” x 55yds |
75mm x 50m | 3” x 55yds |
Log Roll:1200mm x 50m
Jumbo Roll:1200mm x 900m
