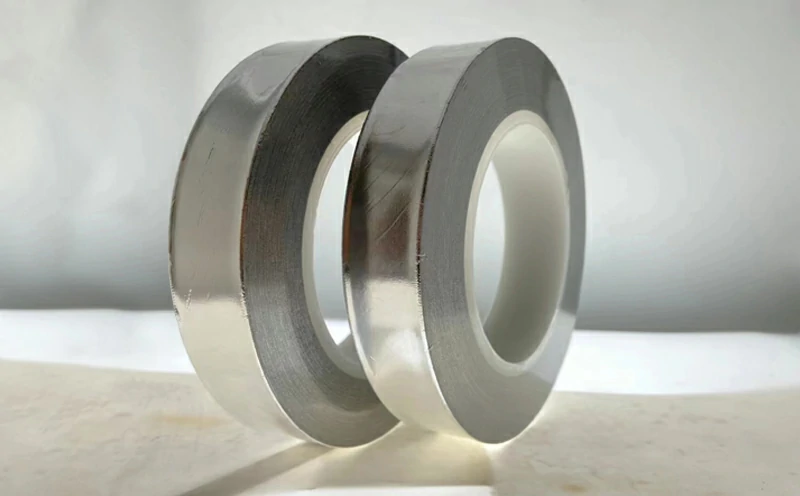

High temperature aluminum foil glass cloth tape is a reinforced aluminum foil tape.

The structure include following layers:

●High temperature resistant glass cloth reinforced foil backing, it is a Aluminum foil laminated with fiberglass cloth with fire retardant glue.
(7um foil / FR glue / 110gsm glass cloth 12×12).

●Coating with a high temperature resistant silicone adhesive.

●Protected by an easy-release silicone release paper.

High temperature aluminum foil / glass cloth tape is a strong and flexible tape with high tensile strength, puncture and tear resistance. The silicone adhesive adheres well to silicone surfaces and over irregular or uneven substrates. This tape is light and heat reflective, plus it resists flame, moisture, weather and UV degradation. It is a chemical resistant, thermally conductive tape that performs consistently at temperatures ranging from -70 degree Celsius to +225 degree Celsius.

TYPICAL APPLICATIONS:

The glass cloth aluminum foil tape consists of an aluminum foil, glass cloth backing combined with a pressure sensitive acrylic adhesive. Ideal for use as a protective wrap for heat sensitive cables and other instruments exposed to movement and vibration. Commonly used in HVAC duct work, aerospace, automotive and general industrial applications.

FEATURES:

  • High tensile strength, glass cloth reinforced foil tape offers puncture, fracture and tear resistance.
  • Performs continuously over a wide temperature range from -70℃ to +225℃.
  • Light and flexible construction easily conforms to curved or irregular surfaces.
  • Thermally conductive and reflective backing assists with heat shielding.

PHYSICAL PROPERTIES:

PROPERTIES

METRIC

ENGLISH

TEST METHOD

Backing Thickness

135 Micron

5.4Mil

PSTC-133 / ASTM D 3652

Total Thickness

185 Micron

7.4 Mil

PSTC-133 / ASTM D 3652

Adhesion to Steel

18N/25mm

64.8Oz./In.

PSTC-101 / ASTM D 3330

Tack Rolling Ball

15cm

6.0 In.

PSTC-6 / ASTM D 3121

Tensile Strength

265 N/25mm

60.0Lb/In

PSTC-131 / ASTM D 3759

Elongation

5.0%

5.0%

PSTC-131 / ASTM D 3759

Service Temperature

-70℃ to +225℃

-94℉ to +437℉



Fire Rating

Class O & 25 / 50

Class O & 25 / 50

BS476 Pt.6 & 7 / UL 723

ROLL SIZE:

Finish Roll:

50mm x 50m 2” x 55yds
75mm x 50m 3” x 55yds

Log Roll: 1020mm x 50m

Jumbo Roll: 1020mm x 3000m
