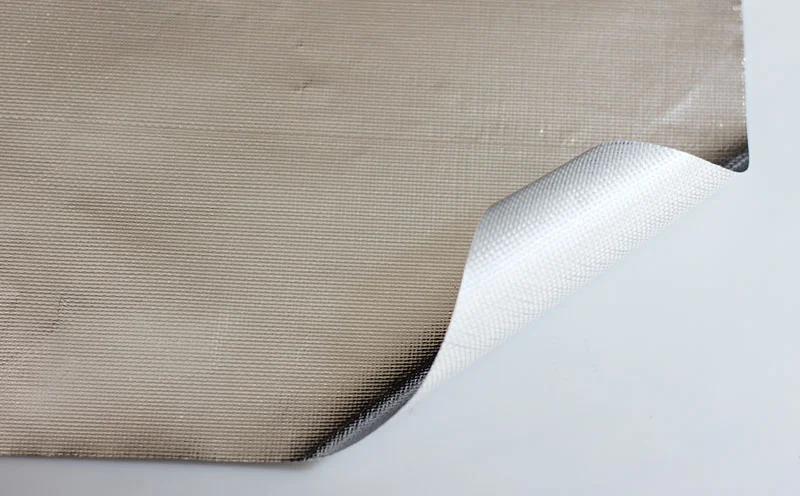

Aluminum foil vapor barrier is F/R grade Foil-Scrim-Kraft Facing with 2-way scrim and 60gsm Kraft (F/R treated). Used facing & vapor barrier for duct wrap insulation.
Aluminum foil vapor barrier is a flame retardant, vapor-barrier, and insulation facing for the insulation industry.Foil-scrim-kraft is laminated 5 layers of structure, all 5 layers laminated together using a flame-retardant adhesive. The outer layer is aluminum foil and kraft paper.Middle layer is the glass fiber layer double side coated with flame-retardant adhesive, it increased tensile strength of FSK, and the aluminum foil and kraft paper are firmly bonded.
Aluminum foil vapor barrier protects insulation materials as like as a jacket. Aluminum foil vapor barrier is most commonly used to exposed surfaces of Duct wrap, HVAC Ductwork, Exterior wall insulation, Metal building insulation, Pipeline insulation, Hot water tank insulation.
FSK: Foil-scrim-kraft, Scrim=Yarn
|
Composition |
Description |
Value (English) |
Value (Metric) |
|
Foil |
Aluminum |
0.28 mil |
7 micron |
|
Reinforcing- MD |
Fiberglass |
1/2 inch spacing |
12.5mm spacing |
|
Reinforcing-XD |
Fiberglass |
1/2 inch spacing |
12.5mm spacing |
|
Adhesive |
Polyethylene |
– |
– |
|
Kraft |
Natural |
36.6 lbs / 3000 ft2 |
60gsm |
|
Physical properties |
Test Method |
Value (English) |
Value (Metric) |
|
Basis weight |
Scale |
19.4 lbs / 1000 ft2 |
95gsm |
|
Permeance (WVTR) |
ASTM E96, Procedure A |
0.1 perm |
5.75 ng/N.s |
|
Tensile Strength-MD |
ASTM D828 |
29.5 lbs / In |
130 N/25mm |
|
Tensile Strength-XD |
ASTM D828 |
16lbs / In |
70 N/25mm |
|
Burst Strength |
ASTM D774 |
43.5psi |
30 N/cm2 |
|
Low temperature Resistance |
ASTM D1790 4 hrs @ -40℉ (-40℃) |
Remains Flexible No Delamination |
Remains Flexible No Delamination |
|
High temperature Resistance |
ASTM D1790 4 hrs @ +240℉ (+116℃) |
Remains Flexible No Delamination |
Remains Flexible No Delamination |
|
Emissivity |
ASTM E408 |
-0.03 |
-0.03 |
Available Roll Width: 1.0m, 2.0m, 1.25m, 1.30m, 1.35m
