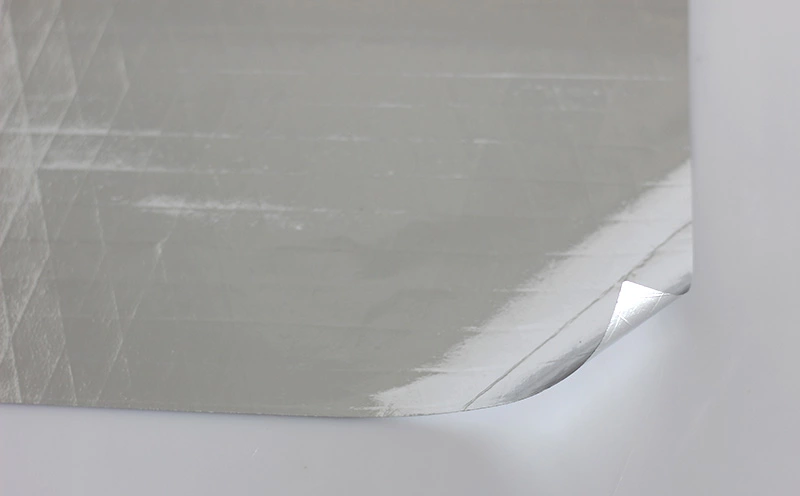

Insulation foil tape is typically made of a thin layer of aluminum foil, which provides excellent thermal conductivity and reflects radiant heat. The foil is often laminated to a backing material, such as a reinforced paper or plastic film, to enhance its strength and durability. The tape is coated with a pressure-sensitive adhesive on one side, allowing it to adhere securely to various surfaces.
The primary purpose of insulation aluminum foil tape is to create a tight seal between insulation panels or to cover gaps and seams in insulation systems. It helps to prevent heat loss or gain, improve energy efficiency, and maintain a comfortable indoor environment.

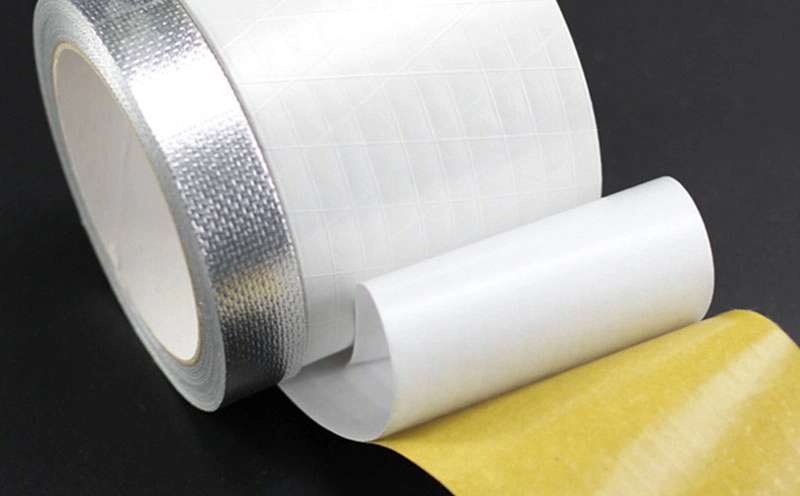

Foil scrim kraft insulation features an aggressive, all-weather acrylic adhesive that bonds tightly and permanently when smoothed down on the insulation facing surface. All Weather adhesive technology permits service temperatures of -22℉ to +176℉ (-30℃ to +80℃), and an application range of +50℉ to +105℉ (+10℃ to +40℃). It is primarily used for seam sealing and patching of FSK-faced duct wrap insulation.
FSK insulation foil tape is used for seam sealing and patching of FSK-faced duct wrap insulation, and other insulation applications where FSK facing is used, providing a matching appearance and vapor retarder integrity.
PROPERTIES |
METRIC |
ENGLISH |
TEST METHOD |
Backing Thickness |
120Micron |
4.8Mil |
PSTC-133 / ASTM D 3652 |
Total Thickness |
170 Micron |
6.8Mil |
PSTC-133 / ASTM D 3652 |
Adhesion to Steel |
20N/25mm |
72Oz./In. |
PSTC-101 / ASTM D 3330 |
Tack Rolling Ball |
15cm |
6.0In. |
PSTC-6 / ASTM D 3121 |
Tensile Strength |
120 N/25mm |
27.3Lb/In |
PSTC-131 / ASTM D 3759 |
Elongation |
2.0% |
2.0% |
PSTC-131 / ASTM D 3759 |
Service Temperature |
-20℃ to +80℃ |
-4℉ to +176℉ |
|
Applying Temperature |
+10℃ to +40℃ |
+50℉ to +105℉ |
|
Finish Roll:
50mm x 50m | 2” x 55yds |
75mm x 50m | 3” x 55yds |
Log Roll:1200mm x 50m
Jumbo Roll: 1200mm x 900m
