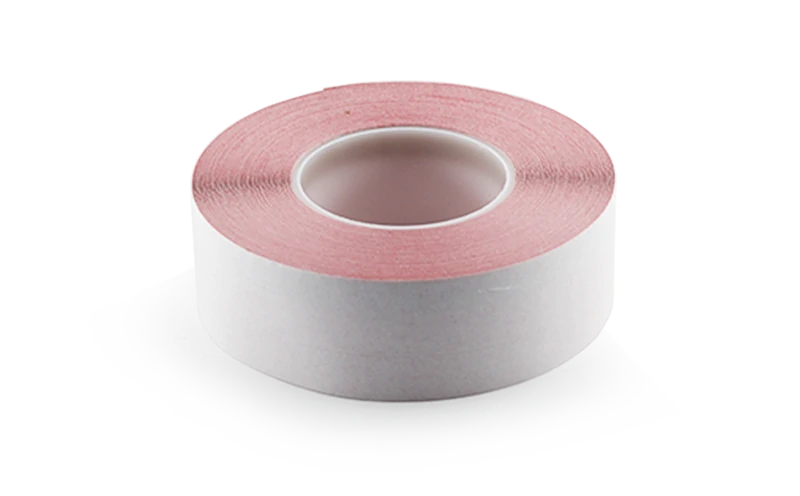

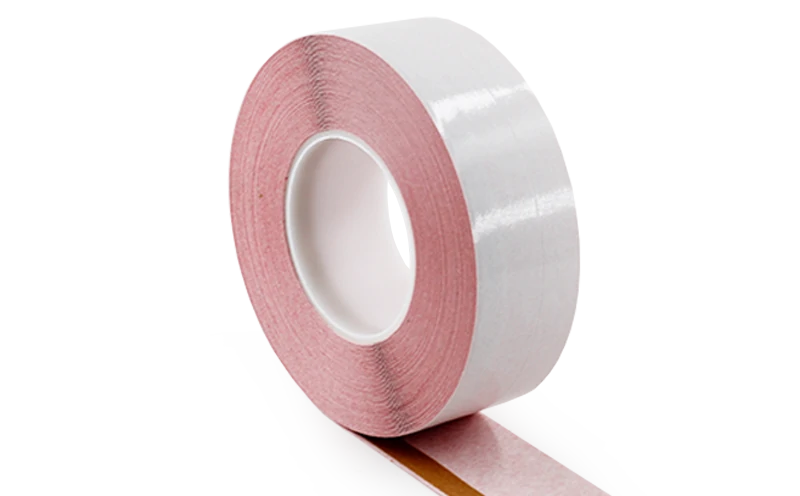

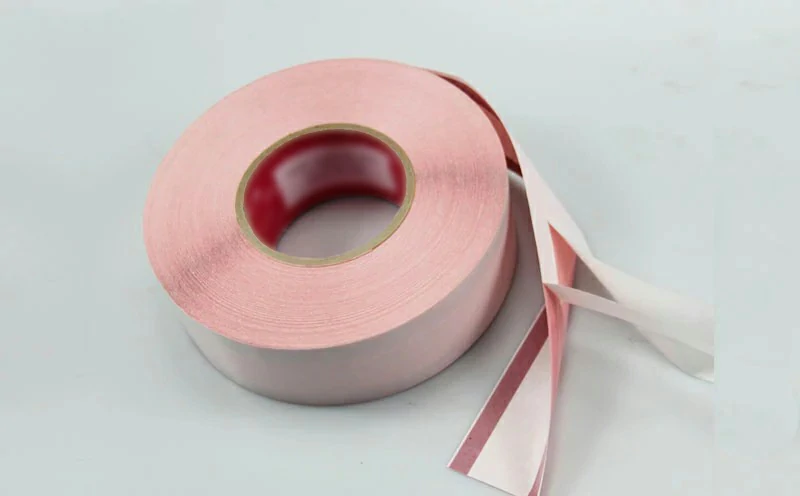

Web splicing tape is a splicer for web press that is used for continuous production.  Web press splicing tape to join 2 rolls of materials to increase the length or provide continuity of substrate. It works by “pasting” an expiring roll onto the next so that the press does not have to stop. It is a high speed splicing tape that with slitted paper liner and fixed trips use for flying paster. The high speed splicing tape have two splitting strips with paper backing for a smooth opening of the new paper reel without jeopardizing the coating process.

In Printing industry, commonly used splicng tapes are Web splicing tape, Flexographic printing splicing tape, Label stock splicing tape, Releaseliner splicing tape. They are provide superior adhesion to “difficult-to-adhere-to” surfaces such as plastic films, polycoated paper and boards, and other low-energy surfaces.

SPLICING TAPE APPLICATION:

  • Extrusion coating
  • Lamination coating
  • Flexible packaging
  • Aseptic packaging
  • Silicone coaters
  • Barrier coaters
  • Flexographic printing
  • Rotogravure printing

SPLICING TAPE ADVANTAGES:

  • Slit liner for the secure fixation of the top sheet.
  • Adhesive formulation with very high tack properties for excellent contact between expiring web and new reel.



TAPE STRUCTURE:

TAPE DATE:

Adhesive

Synthetic Rubber

Backing

60g/㎡ Repulpable Paper

Liner

90g/㎡ Slitting Glassine paper

Tape Thickness

110±5 um

Separatable Layer

110 um to 120 um

Tape color

Red

Ball tack at 25℃

Ball No.18

Adhesion to Steel

2,150gf/25mm

Heat Resistance

150 ℃
