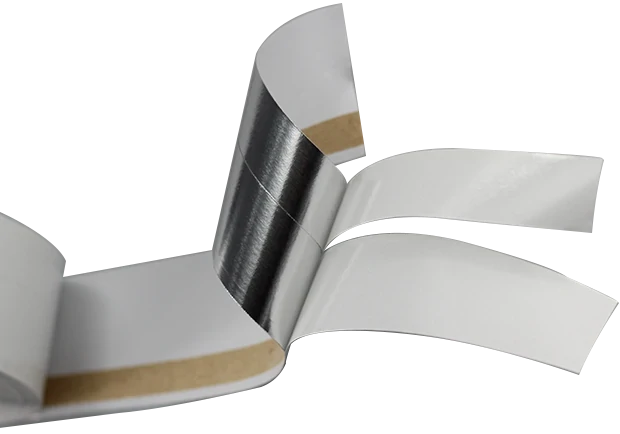

No.60L film splice tape is a silver Flying splice tape that is designed for high speed splices. It has slit liner for the secure fixation of the top layer. One splitting strip with tailored opening characteristics for a smooth opening of the new reel without jeopardizing the converting process.

Film Splicing Tape
Splicing Tape Film

Why Use Flying Splice Tape?

This Flying splice tapes are used to make a manufacturing process continual, joining the end of a web of material to the beginning of a new web, or roll of material. This process of splicing the paper reels allows operators to avoid lengthy downtimes and run continuous production without having to re-thread the material through their equipment.

Flying splice tape used for

Film splice tapes are widely used in manufacturing industries such as PE / PP/ BOPP film splicing, unpolar film splicingm, polycoated paper splicing, Release liner splicing, Label Stock Splicing, Flexographic printing, Web press printing.

How do you apply Flying splice tape?

  • Fold back top paper sheet of the new paper reel
  • Apply the Splice tape along the tube axis
  • Remove the narrow part of the liner of Splice tape
  • Stick the top paper sheet on the Splice tape
  • Fold back the overlapping paper sheet
  • Cut away the overlapping paper sheet
  • Remove the other part of liner of Splice tape
  • Ready to splice paper reel

Click on to view the diagram: Flying splice tape Operation guid

Splice Tape Advantages

  • Slit liner for the secure fixation of the top sheet.

  • Adhesive formulation with very high tack properties for excellent contact between expiring web and new reel.

  • Two splitting strips with paper backing for a smooth opening of the new paper reel without jeopardizing the coating process.

Splice Tape Application

Paper printing flying splice tape.

Film splice tape for paper and film materials.

Flexographic printing flying splice tape.

Web printing flying splice tape.

Label and narrow web splicing tape.

MD elongation at break: 3.5%

Tape Structure

Flying Spice Tape Structure, Liner(White):Slit Liner / High adhesion adhesive /
Backing:Heat resistant Paper / Separatable Layer / Adhesive

Tape Technical Data


High adhesion adhesive


Heat resistant paper


Slitting Glassine paper

Tape Thickness

120±5 um

Separatable Layer

110 um to 120 um

Tape color


Tack at 25℃


Splicing speed


Heat Resistance

-20℃-100 ℃
