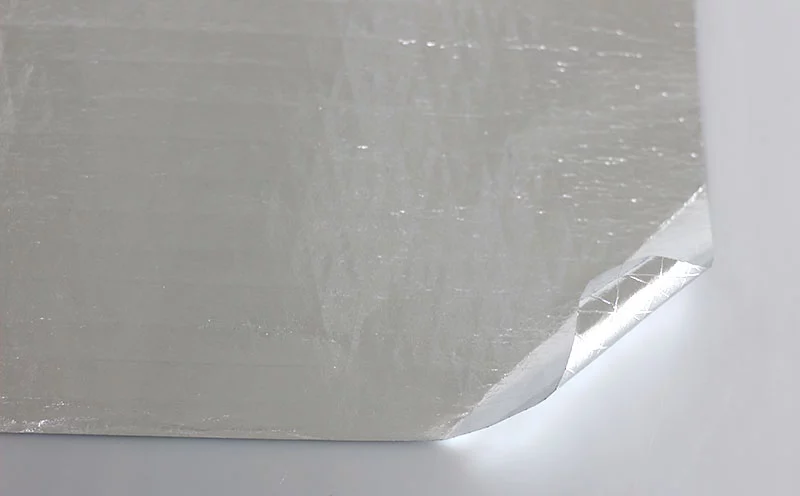

Double sided reflective foil insulation as radiant barriers and reflective insulation work by reflecting radiant heat. D/S Reflective Aluminum foil radiant barriers are installed outside the glass wool, rock wool, mineral wool, foam insulation materials.

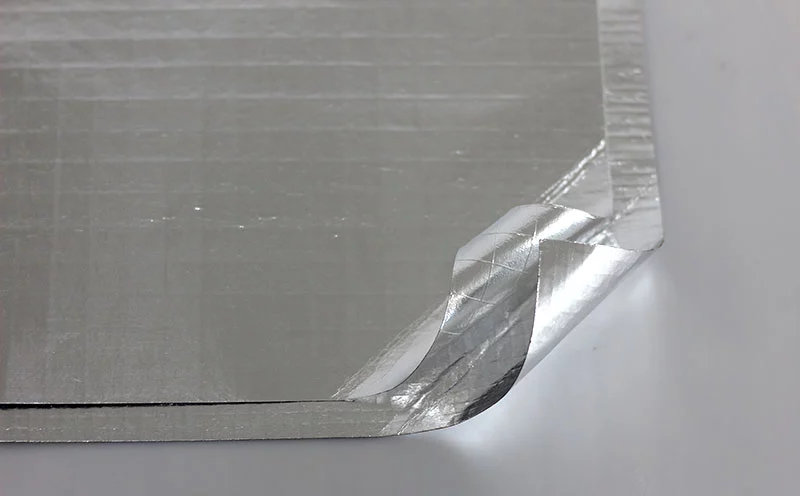

Flame-retardant CM grade foil insulation. Double sided reflective foil insulation is made from 2 outer layers of pure aluminum foil and 1 layer F/R kraft paper. These layers are bonded together with F/R Glue and reinforced with 2-way fiberglass scrim. It is ideally used as sarking and insulation under roofs, in walls behind cladding or under timber floors, for residential and commercial building. Combining with glass-wool /rockwool/ mineral wool/ foam insulation, it is excellent as a vapor barrier and reflective foil insulation for air-conditioning ducts, pipes and vessels.

FOIL INSULATION COMPOSITION:

Composition

Description

Value (English)

Value (Metric)

Foil

Aluminum

0.28 mil

7 micron

Reinforcing-MD

Fiberglass

2/inch

8/100mm

Reinforcing- XD

Fiberglass

3/inch

12/100mm

Adhesive

Flame-Retardant Glue





Kraft

Flame-Retardant

55.2Ibs/3000ft2

90gsm

Adhesive

Flame-Retardant Glue





Foil

Aluminum

0.28 mil

7 micron

Remarks:

  • The data above are typical values only, and should not be used for specifications purpose.
  • Tolerance: Weight and Thickness: ±10%；Width:±3mm; Length: Log Roll: ±0.3m, Jumbo Roll: ±0.5%.
  • The products should be stored at room temperature, kept away from wet and heat source.
  • The users should take test and do trial-application on the above products before coming into application so as to witness and ensure suitability for their special purpose and technique.

FOIL INSULATION PROPERTIES:

Physical properties

Test Method

Value (English)

Value (Metric)

Basis weight

Scale

28.6Ibs/1000ft2

140gsm

Permeance (WVTR)

ASTM E96,

Procedure A

0.02 perm

1.15 ng/N.s

Tensile Strength-MD

ASTM D828

45 lbs / In

200 N/25mm

Tensile Strength-XD

ASTM D828

25lbs / In

110 N/25mm

Burst Strength

ASTM D774

75.4psi

52 N/cm2

Low temperature

Resistance

ASTM D1790

4 hrs @

-40℉ (-40℃)

Remains Flexible

No Delamination

Remains Flexible

No Delamination

High temperature

Resistance

ASTM D1790

4 hrs @

+240℉ (+116℃)

Remains Flexible

No Delamination

Remains Flexible

No Delamination

Emissivity

ASTM E408

0.03

0.03

Fire Rating

UL723/ASTM E84

Less25/50-Passed

Less 25/50 – Passed

Fire Rating

BS476Pt6&7

Class O – Passed

Class O – Passed



Available Roll Width: 1.20m, 1.35m
