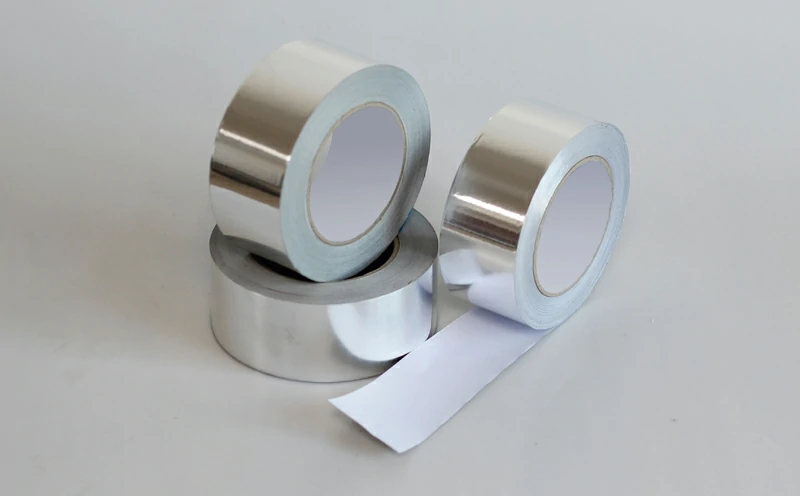

HVAC Aluminium Duct Tape AFR2255

The HVAC aluminum duct tape is high-quality, high tensile strength aluminum foil coated in epoxy resin with strong, cold-weather solvent acrylic adhesive set on a easy-release silicone paper liner to preserve the adhesive and provide ease of use.

  • HVAC Aluminium Duct Tape Introduction

The HVAC aluminum duct tape are Resists flame, moisture / vapor, UV degradation, odor, weather, some chemicals and smoke transmission. Good for both indoor and outdoor use. Chemically resistant, thermally conductive (helping cooling/heating efficiency), heat and light reflective.

The HVAC duct tape ideal for an array of uses, including general repair, sealing hot and cold air ducts (excellent HVAC tape), duct insulation systems, sealing aluminum, stainless and plastic seams / joints, temporary repair of metal surfaces, copper pipe fixing, etc.

The HVAC duct tape provides a durable bond at low and high temperatures. Conformable backing and pressure sensitive adhesive means it will adhere properly to a variety of smooth and irregular surfaces.



FEATURES

Good performance at high and low temperatures.

Can be applied at low temperatures for easy use in cold weather months.

Specialist cold weather adhesive allows good bonding to a full range of different substrates.

Aluminium silver appearance allows the product to blend in easily with HVAC air ducts.

Available with and without a liner for specialist applications.

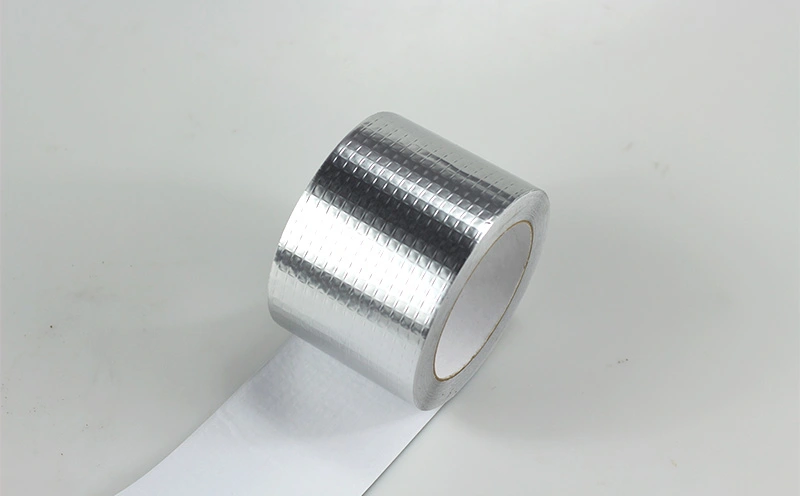

Available with reinforced aluminium foil scrim tape.

Soft aluminium foil allows excellent comfortable for use around shapes and corners.

High tack levels for initial bonding power.

Excellent water resistance providing a water vapour barrier.

Available in a range of different foil micron thicknesses for wider choice.

Good mechanical resistance.

Excellent strength and durability in use.

Good chemical resistance.

All products are REACH safety compliant.



TYPICAL PHYSICAL PROPERTIES

PROPERTIES

METRIC

ENGLISH

TEST METHOD

Backing Thickness

22 Micron

0.88Mil

PSTC-133 / ASTM D 3652

Total Thickness

55 Micron

2.2 Mil

PSTC-133 / ASTM D 3652

Adhesion to Steel

18N/25mm

65Oz./In.

PSTC-101 / ASTM D 3330

Tensile Strength

40 N/25mm

9.1Lb/In

PSTC-131 / ASTM D 3759

Elongation

3.0%

3.0%

PSTC-131 / ASTM D 3759

Service Temperature

-20℃ to +80℃

-4℉ to +176℉



Applying Temperature

-10℃ to +40℃

+50℉ to +105℉





TYPICAL APPLICATIONS:

HVAC Aluminium tape, HVAC foil tape and HVAC aluminium duct tape are developed specifically to meet the stringent demands of the HVAC (Heating, Ventilation, Air Conditioning) market and for specialist applications from aerospace, automotive and glazing, exhibiting the premium performance and characteristics required in these exacting market segments, including: Building And Construction, Manufacturing, Speciality And Assembly.



ROLL SIZE:

Finish Roll:

50mm x 50m     2” x 55yds

75mm x 50m     3” x 55yds

Log Roll:   1020mm x 50m

Jumbo Roll: 1020mm x 3000m
