Splittable double sided tape is a High speed splicing tape made with splittable film backing.



What does SPLITTABLE mean?

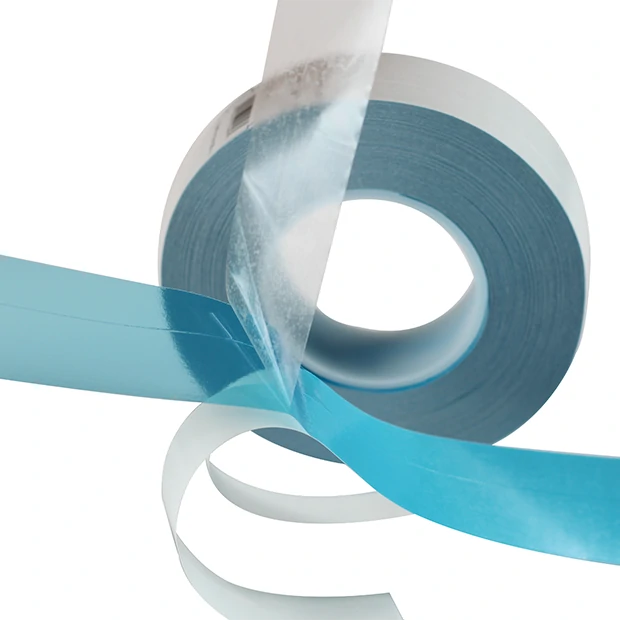

The tape backing is laminated PET film. It will separate in 2 single coated tapes— a process made visible by the independently tinted under laminate and over laminate. In order to best identify the splice components, the tape splits into a blue layer and a clear layer.

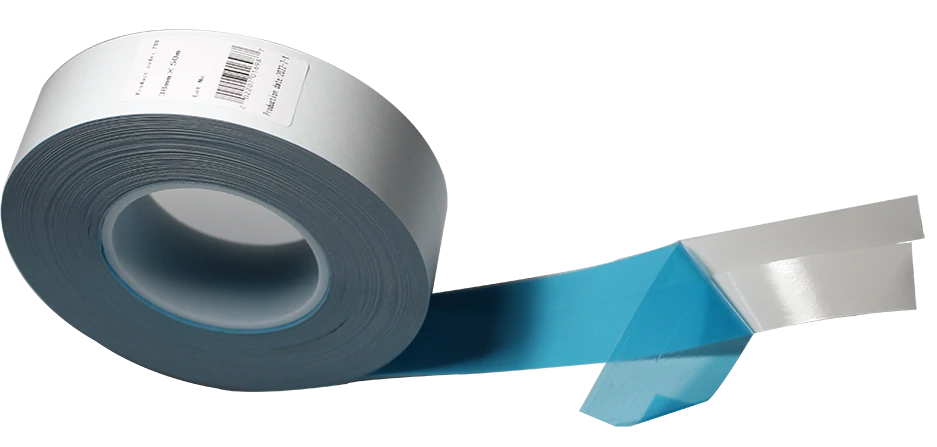

Splittable Tape

TAPE FEATURES

Splittable Splicing Tape

  • Special splittable backing consistent splicing at high speed.

  • Splitting force especially adjusted to LDPE, BOPP and PET.

  • Very low deviation of the splitting force.

  • Very good adhesion even on unpolar and low surface energy (LSE) .

  • High initial tack.

  • Excellent heat resistance up to 150°C.

TAPE APPLICATION

  • Splittable double sided tape is for film splices at high speeds in printing and converting applications.
  • The high performance adhesive designed for film splicing.
  • Engineered splitting layer for consistent splicing at high speeds.
  • It is faster, and more efficient because there is less time lost due to web breaks.
  • Other splicing tapes requires glue and tabs in order to use.
  • With these tapes, a missed splice could mean glue on the rollers and more down time.

TAPE STRUCTURE

  • Liner: Slitted Silicone coated paper
  • Adhesive: High adhesion Acrylic
  • Separatable layer Backing: Liminated PET film
  • Adhesive: High adhesion Acrylic
Splittable Splicing Tape for Film Structure

TECHNICAL DATA

Release Liner

Silicone coated Glassine paper

Adhesive

High adhesion adhesive

Backing

PET film

Separatable Layer

70㎛

Tape thickness

70±5㎛

Tape color

Blue

Tack

20-25N/25mm

Application temperature

250 ℃

Elongation at break

6%

Width(mm)

19mm to 100mm

Length(m)

50m
