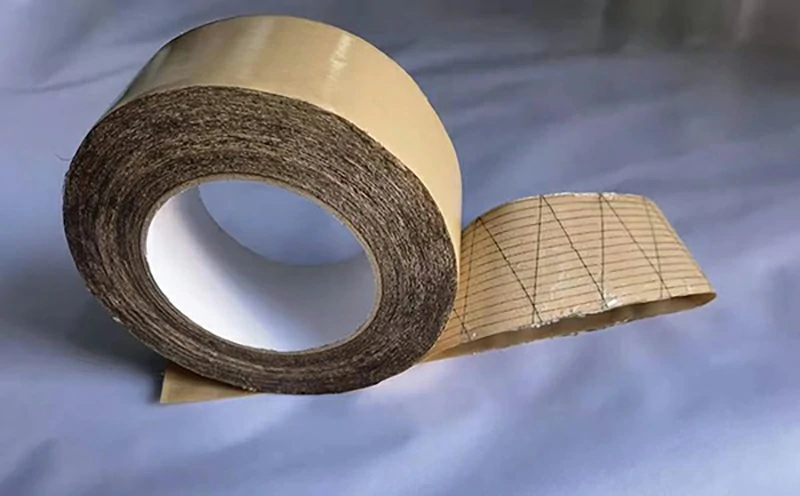

Transfer tape with scrim is a specialized adhesive tape used in various industries for transferring graphics, decals, or vinyl lettering from a release liner to a desired surface. It is commonly used in the signage, automotive, and crafting industries.

Transfer tape with scrim are rolls of pressure sensitive adhesive pre-applied to a special release liner. Transfer scrim tape adds extra support to the adhesive. For application duct transfer tape is positioned adhesive side down to a surface and the liner is removed, exposing the backside adhesive allow the adhesive to cleanly and completely transfer to uneven surfaces.

Scrim is a loosely woven or non-woven fabric that provides additional strength and stability to the tape. It helps prevent stretching or tearing during application and ensures smooth and precise transfer of the graphic or vinyl.

Transfer Tape Applications:

  • Automotive interior bonding: Nonwovens, Fabrics, Nameplates.
  • Large area lamination: Vinyl Wall base trims, Open and Closed cell foams, Vinyl stair treads, Various flooring materials.
  • Acoustic insulation, Wood, Plastic, Metal.

Transfer Tape Technical Details:

Support: PES / PVA Diagonal Scrim
Adhesive Weight: 230-280g/m²
Total Thickness: 0.24mm
Temperature Resistance: -40 to +140°C
Adhesive Strength (Contact Time 1 Hour): Min 25 N/25mm
Liner: Kraft release paper, 110 gsm Double sided silicone
Peel Adhesion to Steel(Based on Afera 5001): 37N/25mm
Dynamic Shear Resistance(Based on FTM 18): 0.14N/mm²
