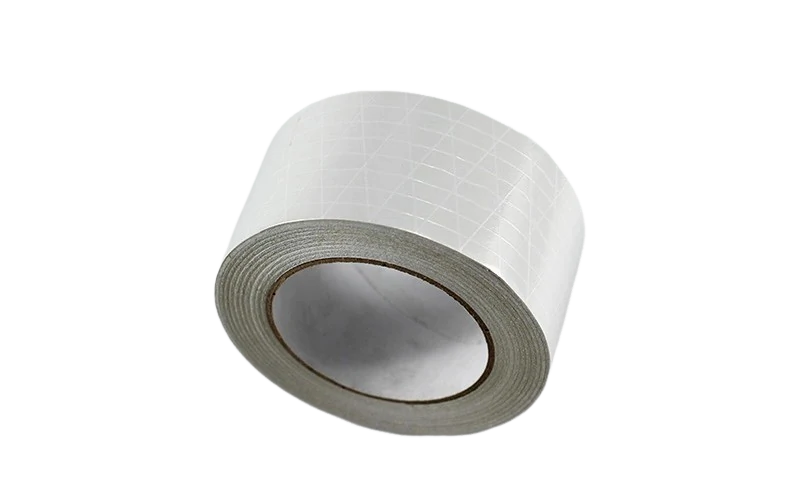

White lacquered 36 micron (1.4mil) aluminum foil, combined with a high performance solvent acrylic adhesive, protected by an easy-release silicone release paper.
White aluminum foil tape use for taping exposed edges and board joints of HVAC ductwork system. Also used to block lighting spills on heat generating equipment. Matte white finish does not reflect light.
White aluminum foil tape will be offer good tack and adhesion to width range of temperature (from -30 degrees to 150 degrees ). White aluminum foil tape will be good aging stability, high resistance to UV, ozone and humidity, best useful in long-term, outdoor applications.
AFA Series HVAC aluminum foil tape are single-faced adhesive tape of aluminum foil backing which is coated by solvent acrylic adhesive (PSA) ,thus can be manipulated based on the selection of the monomers used in the formulation.
AF-Alum. Foil backing, A-Acrylic adhesive, 36-Backing thickness36um, 78-Tape thickness78um, W-White Lacquered backing surface
HVAC industry for joining and sealing Foil-Scrim-Kraft Facing laminated fiberglass blanket / duct board joints and seams; joining and sealing flexible air duct seams and connections. White aluminum foil tape also be used for other industrial uses requiring a tape with these characteristics and benefits.
|
PROPERTIES |
METRIC |
ENGLISH |
TEST METHOD |
|
White coating |
2.5 Micron |
0.1Mil |
PSTC-133 / ASTM D 3652 |
|
Backing Thickness |
36Micron |
1.4Mil |
PSTC-133 / ASTM D 3652 |
|
Total Thickness |
78Micron |
3.12Mil |
PSTC-133 / ASTM D 3652 |
|
Adhesion to Steel |
15N/25mm |
54Oz./In. |
PSTC-101 / ASTM D 3330 |
|
Tack Rolling ball |
20cm |
8.0In |
PSTC-6 / ASTM D 3121 |
|
Tensile Strength |
50 N/25mm |
11.4Lb/In |
PSTC-131 / ASTM D 3759 |
|
Elongation |
3.0% |
3.0% |
PSTC-131 / ASTM D 3759 |
|
Service Temperature |
-30℃ to +120℃ |
-22℉ to +248℉ |
|
|
Applying Temperature |
-10℃ to +40℃ |
+50℉ to +105℉ |
|
Finish Roll:
| 50mm x 50m | 2” x 55yds |
| 75mm x 50m | 3” x 55yds |
| Log Roll: | 1020mm x 50m |
| Jumbo Roll: | 1020mm x 3000m |
